Cudy 8-Port Gigabit Metal Switch

R329,00

Key specs
Standard configuration
8 10/100/1000M RJ-45 adaptive ports
Switching Capacity
16Gbps
Throughput
11.9Mpps
Packet Neck Scarfer
2.5M
MAC Address
1K
See all specifications ↓

20 in stock

SKU: GS108 Category: Brand:

Overview

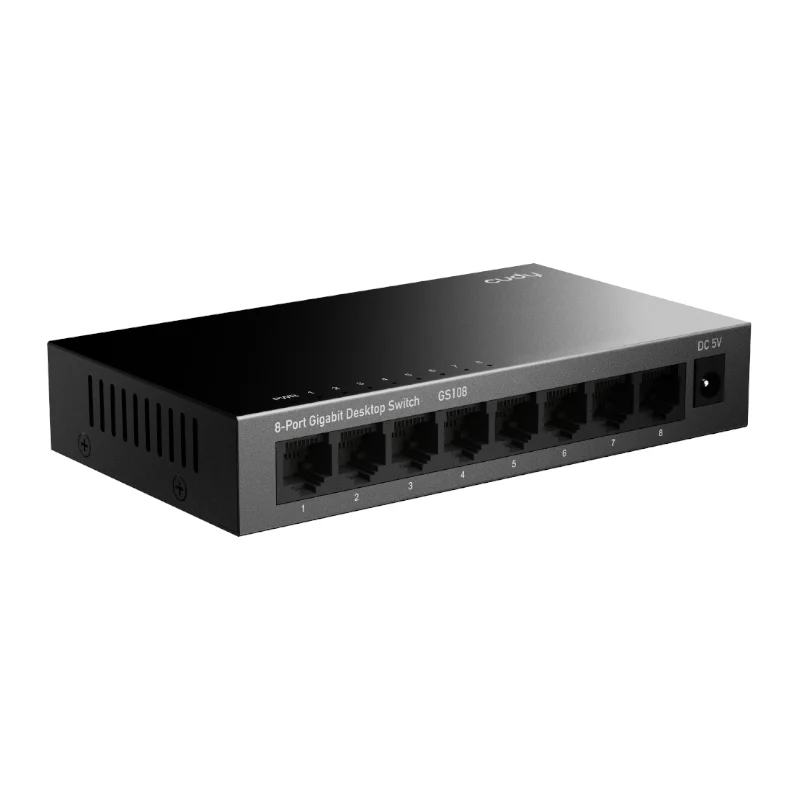

The Cudy GS108 8-Port Gigabit Desktop Switch allows you to manage your home network with ease. It supports bandwidth speeds of up to 16Gbps and features 6 Ethernet ports and 2 uplink ports. Its high-speed RJ-45 connectors support any 10/100/1000Mbps Ethernet devices.

For additional protection, it features a VLAN mode which helps isolate the ports from each other. The IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode offer increased bandwidth to alleviate network congestion, making the switch work reliably.

Used for many applications the Cudy GS105 works with IP Cameras for home, office or small businesses. It also works well with PCs, printers and access points in your home or office, making it ideal for small businesses. It even features an Extend mode for longer distances up to 250 meters.

Its simple plug and play interface makes it incredibly easy to use. Its sturdy design is made from high-quality metal. This gives you a longer service life and provides better heat dissipation, making it suitable for most environments. It also features a fanless design for silent operation.

FEATURES:

  • Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3x and IEEE 802.3ab standards
  • 8 10/100/1000Mbps Auto-Negotiation, Auto-MDI/MDIX ports provide smart switching between 10Mbps, 100Mbps and 1000Mbps hardware
  • Non-blocking switching architecture enables full wire-speed packets forwarding and filtering
  • Store-and-Forward switching method
  • Supports 16K MAC address auto-learning & auto-ageing

Specifications

Standard configuration8 10/100/1000M RJ-45 adaptive ports
Switching Capacity16Gbps
Throughput11.9Mpps
Packet Neck Scarfer2.5M
MAC Address1K
Jumbo Frame2K
Transfer ModeStore and forward
MTBF100000 hour
Network protocol
IEEE802.3 (10Base-T)
IEEE802.3u (100Base-TX)
IEEE802.3ab (1000Base-TX)
IEEE802.3x (Flow control)
Industry Standard
EMIFCC Part 15 CISPR (EN55032) class A
EMSEN61000-4-2 (ESD), EN61000-4-4 (EFT)
ShockIEC 60068-2-27
Free FallIEC 60068-2-32
VibrationIEC 60068-2-6
Network Medium
10Base-TCat3, 4, 5 or above UTP(≤100m)
100Base-TXCat5 or above UTP(≤100m)
1000Base-TXCat5 or above UTP(≤100m)
LED Indicators
PWR (Power indicator)
Link (Network Link)
LOOP (Loop alarm)
DIP Switch
VLANPort Isolation, 1-6 ports are isolated each other, all communicate with uplink port 7/8
DefaultDefault mode, Support loop alarm
ExtendMonitor Mode, 1-6 ports support 100M speed reduction negotiation, support 250 meters in 10Mbps/s mode, port 7 and port 8 as an uplink port
Power Voltage
Power Input VoltageAC 100-240 V
Switch Input VoltageDC 5V
Product Dimensions13.7 x 7.7 x 2.5 cm
Product Weight300g
General
BrandCudy
Model / part numberGS108

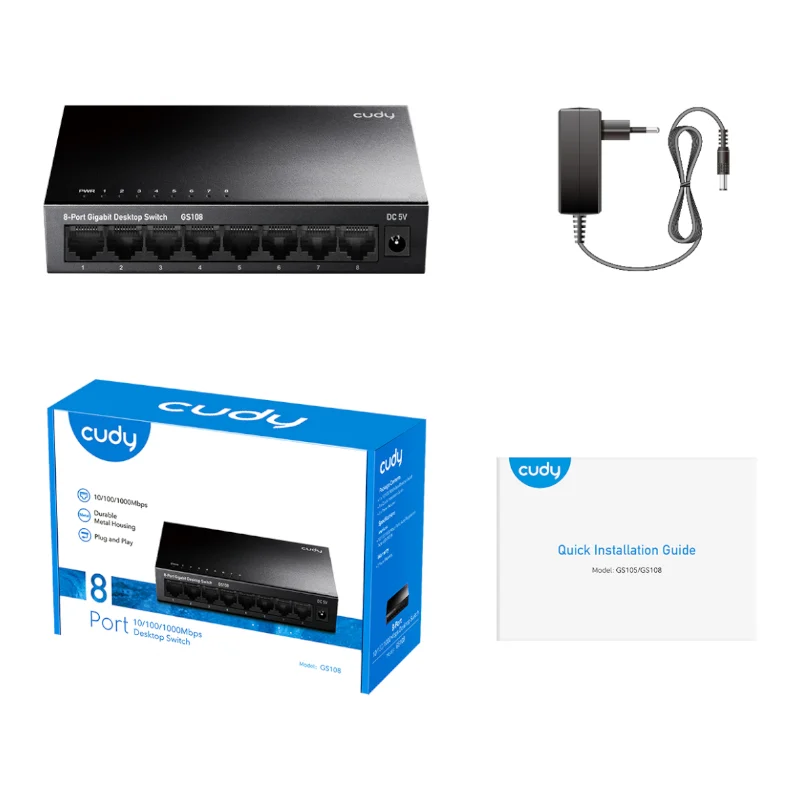

What's in the box

  • Cudy GS108 8-Port Gigabit Desktop Switch - Black x1
  • Power Adapter x1
  • Quick Install Guide x1

Delivery & returns

  • Nationwide delivery by courier – the shipping cost is calculated from the product weight at checkout.
  • Manufacturer warranty applies.
  • See our Refund & Returns Policy. Questions? Contact us.
