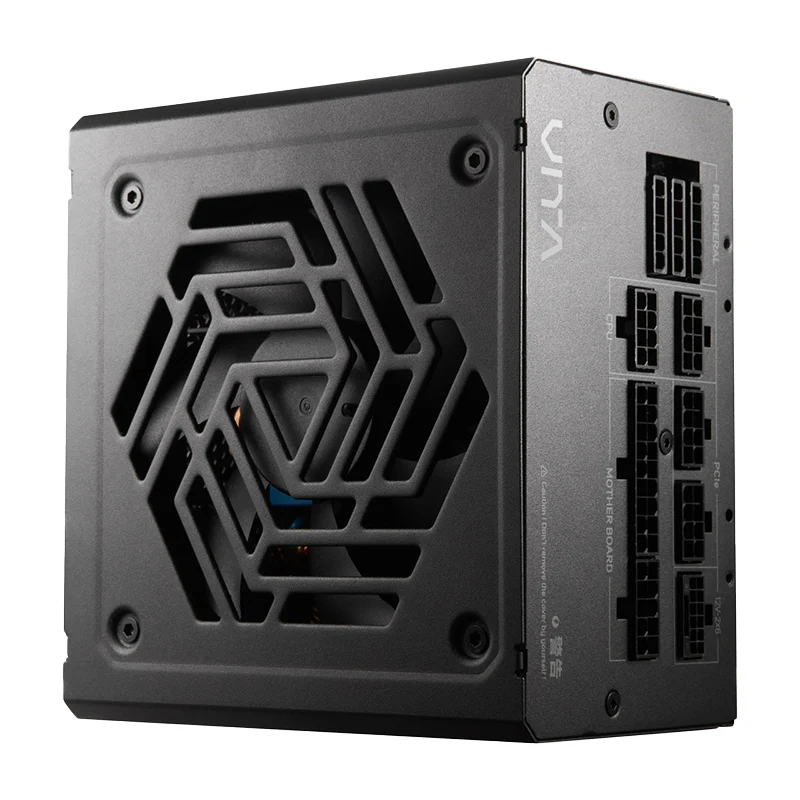

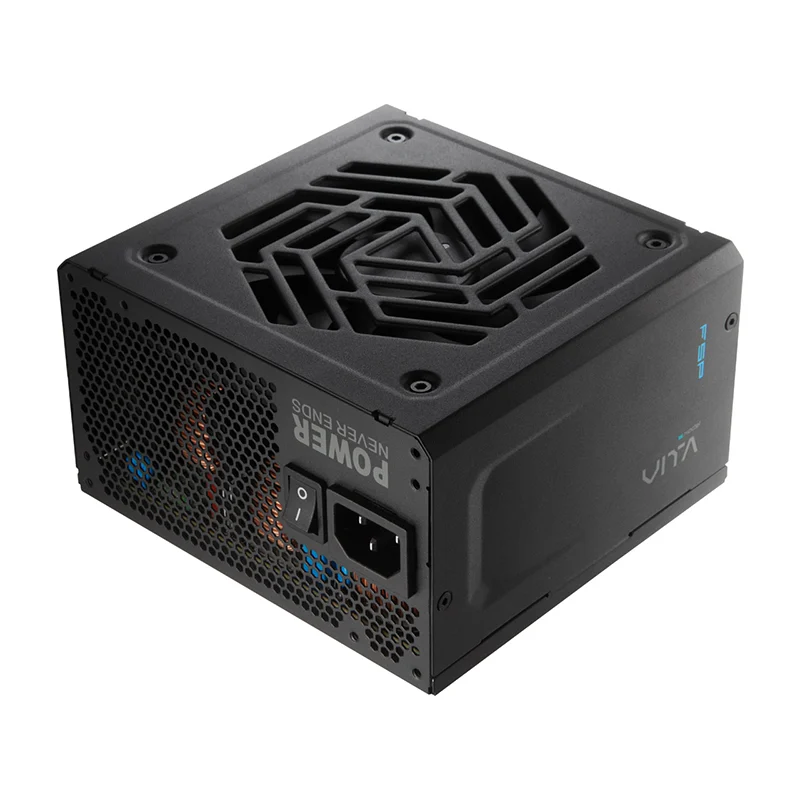

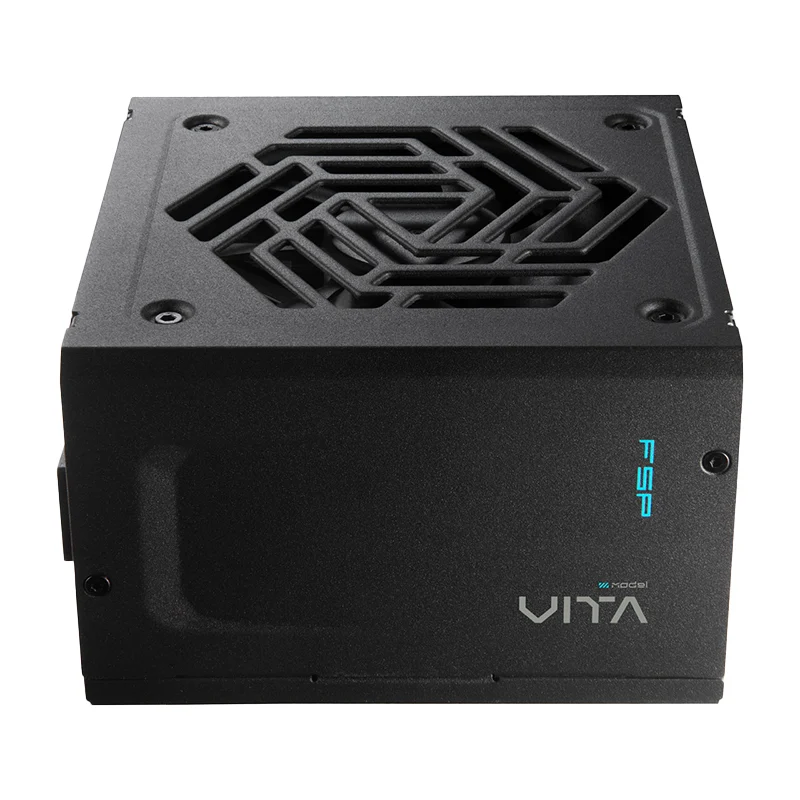

FSP VITA GM 750W Gold Fully Modular PSU

R1 849,00

Key specs
Rated Output Power
750W
Form Factor
ATX12V V3.1
80 PLUS Certification
Gold
Input Voltage
100-240Vac
Input Current
10-5A
See all specifications ↓

33 in stock

SKU: PPA7507900 Category: Brand:

Overview

Built to handle the demanding power requirements of tomorrow, these PSUs support total power excursion as per ATX 3.1 and PCIe Gen 5.1 specifications, ensuring they deliver peak performance for future hardware upgrades. Certified with 80 PLUS® Gold efficiency and achieving platinum-level efficiency at typical loads, these power supplies minimise power loss, heat, and noise, offering a cooler and quieter operation.

The advanced LLC resonant-converter topology with synchronous rectification reduces switching losses and keeps the output voltage stable, even under heavy loads, maximising overall system efficiency. The +5V and 3.3V DC to DC circuit design ensures consistent voltage and system stability, while premium 105°C Japanese bulk capacitors provide top-tier reliability and longevity, making them the ideal choice for high-performance PCs. Whether you're a gamer or a power user, these PSUs deliver lasting power and performance you can count on.

FEATURES:

  • Complies with ATX 12V V3.1 & EPS 12V V2.92
  • Efficiency ≧ 90% at typical load
  • 80 PLUS ® gold certified
  • 105°C Japanese bulk capacitor
  • 120mm hydraulic bearing (HYB) fan
  • Fully modular cabling design
  • Complete protections: OCP, OVP, SCP, OPP, UVP, OTP

Specifications

ModelVITA-750GM
Rated Output Power750W
Form FactorATX12V V3.1
80 PLUS CertificationGold
Input Voltage100-240Vac
Input Current10-5A
Input Frequency50-60Hz
Efficiency90%
Fan TypeHYB fan, 120mm
Operation Temp40°C
ProtectionOCP, OVP, SCP, OPP, UVP, OTP
DC Output/Max Output Current/Max Combined Power
+3.3V/20A/100W
+5V/20A/100W
+12V/62.5A/750W
12V/0.3A/3.6W
+5Vsb/3.6A/15W
Connectors
MB 20+4 x1
4+4 PIN x2
PCIe 12V-2x6 x1
PCI-E 6+2 x4
SATA x8
Molex (PERIPHERAL) x4
General
BrandFSP
Model / part numberPPA7507900
Shipping weight2802 g

What's in the box

  • FSP VITA GM 750W 80 PLUS Gold Modular Power Supply - Black x1
  • Modular Cables Set x1
  • Please note: This power supply does not come with a power cable, please see this link for a dedicated cable option to use with this product.
