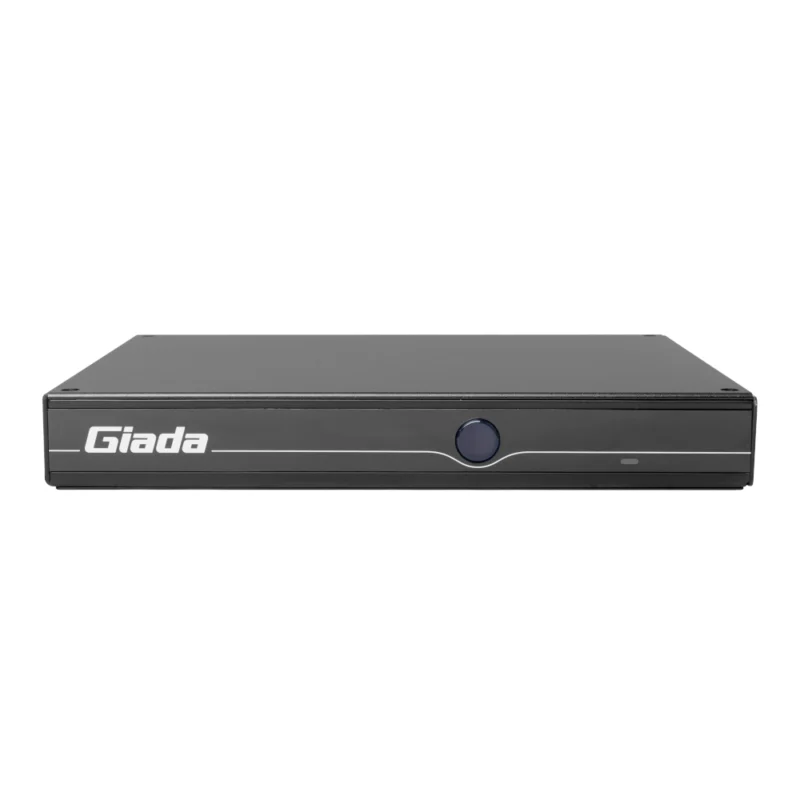

Giada F108D Intel N100 1xDDR4 3200 Mhz 2xHDMI
R7 599,00
Key specs
- Processor
- Intel® Processor N100 (Fanless)
- Memory
- Up to 16 GB, 1 x SO-DIMM DDR4-3200 MHz
- Storage
- 1 x M-Key M.2 (2280) for PCIe3.0 X4 SSD
- Operating system
- Windows 11 (64bit) /Linux Ubuntu (64bit)
- Graphics
- Intel® UHD Graphics
100 in stock
Overview
The Giada F108D Signage Player adopts Intel® Alder Lake-N processors, giving you good performance while featuring a low-power range from 6-15W. The book-size embedded PC is specially designed for digital signage and kiosk applications. The slim embedded PC supports rich I/O ports, including dual COM ports, 6 USB Type-A and dual LAN ports. It can also be easily integrated into vending machines, self-service and check-in kiosks. The digital signage player also comes with built-in Intel® UHD Graphics. It has a DP and two HDMI ports, supporting resolutions up to 4096 x 2160@60Hz. With a passive thermal cooling system, the fanless design reduces the failure rate and makes the device run noise-free and dustproof.
FEATURES:
- Intel® Processor N100
- DDR4 3200MHz memory support
- Intel UHD onboard graphics
- Up to 4k resolution support
- 1x DP and 2x HDMI output
- Support for Wi-Fi/Bluetooth module
- Small form factor design
Specifications
| CPU | Intel® Processor N100 (Fanless) |
|---|---|
| Turbo Frequency | 3.40GHz |
| Chipset | SoC |
| Processing Units | 4 Cores |
| TDP | 6W |
| System Memory | Up to 16 GB, 1 x SO-DIMM DDR4-3200 MHz |
| Storage | 1 x M-Key M.2 (2280) for PCIe3.0 X4 SSD |
| Watchdog Timer | Yes |
| Auto Power On | Yes |
| RTC | Set up independently every day, a week as a cycle |
| Remo on | No |
| Power Requirement | DC-IN, 19 V/2.37 A |
| Construction | Metal |
| Operating System | Windows 11 (64bit) /Linux Ubuntu (64bit) |
| Operating Temperature | 0°C ~45°C (32°F~113°F) @0.7m/s Air Flow |
| Certifications | CE, FCC Class B, UKCA |
| Humidity | 95% @ 45°C (non-condensing |
| Network Controller | 2 x Realtek RTL 8111H Gigabit Ethernet |
| Ethernet Interface | 2 x RJ45 |
| Wi-Fi/BT | 1 x E-Key M.2 (2230) for Wi-Fi/BT, Support Wi-Fi 5, Wi-Fi 6 |
| Mobile Network | 1 x B-Key M.2 (3042) for 3G/4G, 1 x SIM Slot |
| GPU | Intel® UHD Graphics |
| Graphic Engine | DirectX 12.1, OpenGL 4.6, OpenCL 3.0 |
| Display Interface | 1 x DP (Max.4096 x 2160 @60Hz), 2 x HDMI (Max.4096 x 2160 @60Hz) |
| USB | 2 x USB3.2 Gen2, 4 x USB2.0 |
| Serial Port | 2 x RS232 |
| Audio | 1 x MIC-IN, 1 x AUDIO-OUT |
| Button | 1 x Power on, 1 x CLR-CMOS |
| Antenna | 2 x Connector for Wi-Fi/BT |
| Product Dimensions | 18.9 x 14.8 x 2.6 cm |
| General | |
| Brand | Giada |
| Model / part number | F108D-FV-N10040N0G-GIA |
| Shipping weight | 1437 g |
What's in the box
- Giada F108D Alder Lake-N Book Size Signage Player - Black x1
