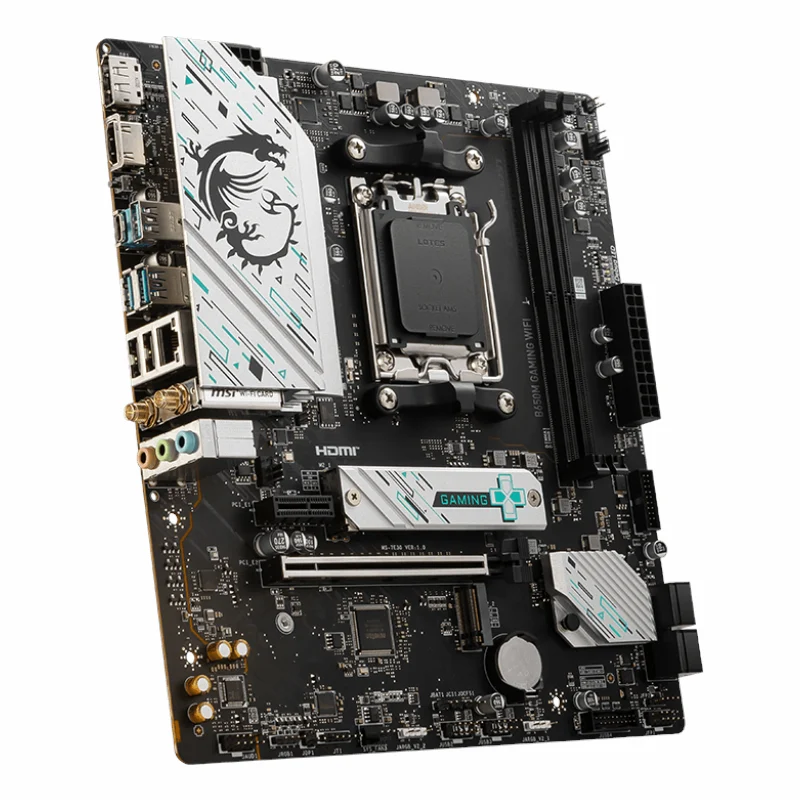

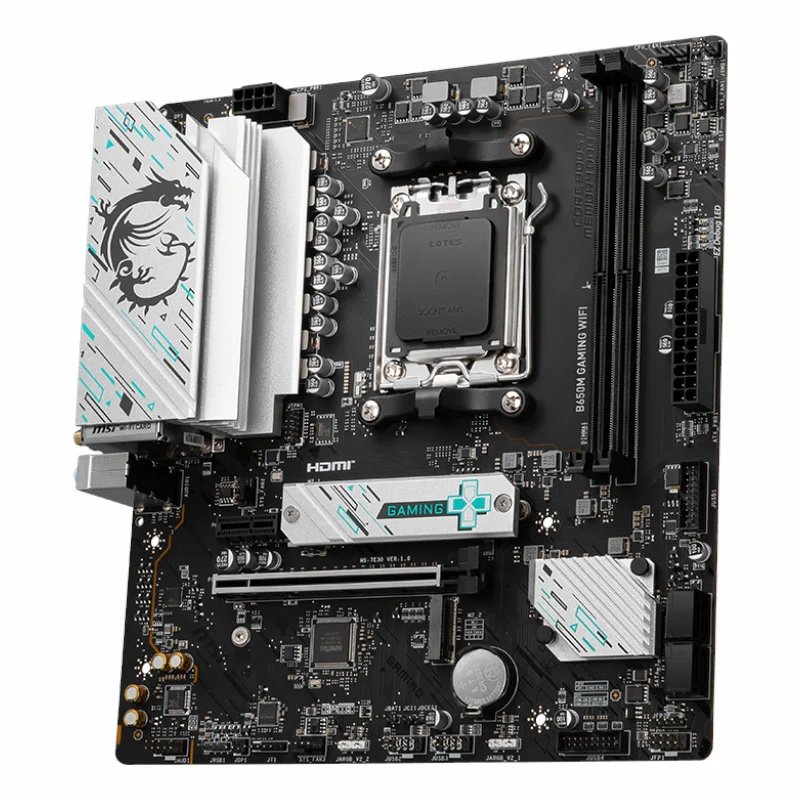

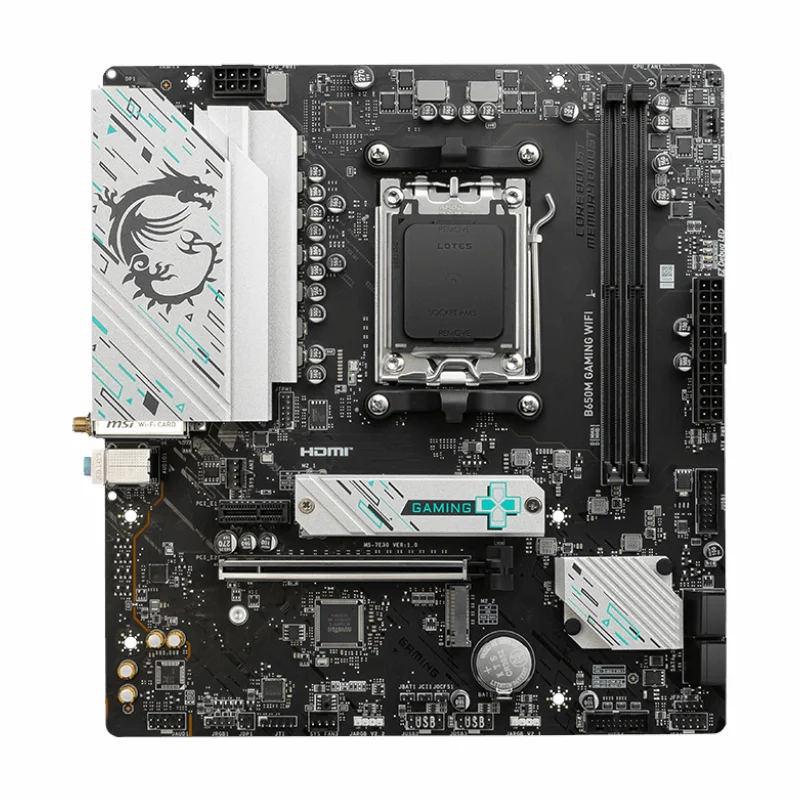

MSI B650M GAMING WIFI AMD AM5 mATX Gaming Motherboard

MSI B650M GAMING WIFI AMD AM5 mATX Gaming Motherboard

R3 099,00

Key specs

Socket: AM5
CPU Support: Supports AMD RyzenTM 8000/7000 Series Desktop Processors
Chipset: AMD B650
Memory Channel: Dual-Channel DDR5
DIMM Slots: 2

38 in stock

SKU: B650MGAMINGWIFI Category: Motherboards Brand: MSI

Overview

B650M GAMING WIFI is designed with tonnes of connectivity, flexible tools, and a convenient Wi-Fi solution with a DDR5 memory version for gamers who want it all.

This is a huge step in DDR performance enhancement with the latest DDR5 memory. With a dedicated SMT welding process and MSI Memory Boost technology, B650M GAMING WIFI is ready to deliver world-class memory performance. The advanced SMT (Surface Mount Technology) welding process reduces the defect rate of slot solder joints, electromagnetism, and interference. With exclusive Memory Boost technology, MSI motherboards deliver a clean and pure high-frequency DDR5 signal.

Core Boost technology utilises MSI’s premium layout and optimised power design to deliver CPU current with increased speed and precision. The software supports multi-core CPUs and optimises CPU overclocking. MSI B650M GAMING WIFI series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster, and have a real advantage over your enemies. MSI B650M GAMING WIFI series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies

FEATURES:

Supports AMD RyzenTM 8000 and 7000 Series Desktop Processors
Supports DDR5 Memory, up to 7800+ (OC) MHz
Core Boost : With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen4 M.2
Steel Armour: Protecting VGA cards against bending and EMI for better performance, stability and strength
AUDIO Boom: Reward your ears with studio-grade sound quality for the most immersive gaming experience
High-Quality PCB: 6-layer PCB made by 2 oz. thickened copper

Specifications

General
Socket	AM5
CPU Support	Supports AMD RyzenTM 8000/7000 Series Desktop Processors
Chipset	AMD B650
DDR5 Memory	DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency	1DPC 1R Max speed up to 7800+ MHz; 1DPC 2R Max speed up to 6400+ MHz
Memory Channel	Dual-Channel DDR5
DIMM Slots	2
Max Memory (GB)	128GB
PCI-E x16	1
PCI-E x1	2
SATA 6G	4
M.2 Slot	2
RAID	0/1/10
LAN	Realtek® 8125BG 2.5G LAN
TPM pin header (Support TPM 2.0)	1
USB 2.0 (Rear)	2
USB 2.0 (Front)	4
USB 5Gbps Type A (Rear)	3
USB 5Gbps Type C (Rear)	1
USB 5Gbps Type A (Front)	4
Audio ports (Rear)	7.1-Channel High Definition Audio, Realtek® RTL8125BG 2.5Gbps LAN
Wifi	AMD Wi-Fi 6E
Bluetooth	5.3
HDMI	1
DisplayPort	1
DirectX	12
Form Factor	mATX
Operating System	Support for Windows® 11 64-bit and Windows® 10 64-bit
Brand	MSI
Model / part number	B650MGAMINGWIFI
Shipping weight	1244 g

What's in the box

MSI B650M Gaming Wifi AMD AM5 mATX Gaming Motherboard, Black x1
I/O Shield x1
SATA Cable x1
EZ M.2 Clips x1
Wifi Antenna x1
Quick Install Guide x1
