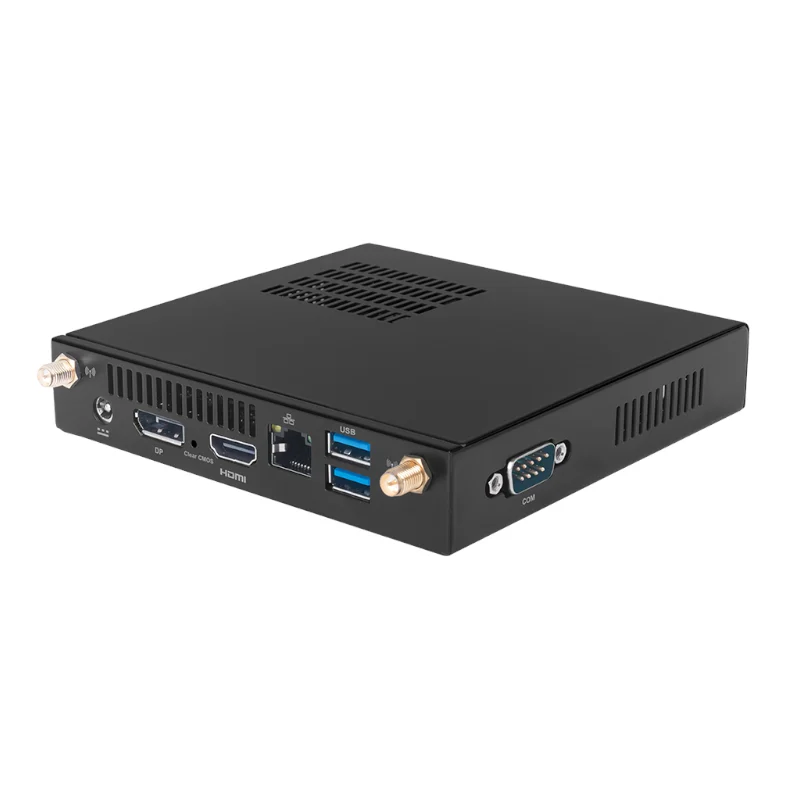

Giada DK310 Celeron J6412 4GB
R10 499,00
Key specs
- Processor
- Intel® Celeron® J6412 processor
- Memory
- 4 GB, Onboard LPDDR4-2666MHz
- Storage
- 1 x Full-size Mini-PCIe for MSATA
- Operating system
- Windows 10 (64bit) / Windows 11 (64bit) / Linux Ubuntu (64bit)
- Graphics
- Intel® UHD Graphics
8 in stock
Overview
The ultra-slim Giada DK310 Intel Celeron J6412 Signage Player is equipped with Elkhart Lake embedded processors, including the low TDP (10W) Celeron J6412. The Elkhart Lake platform has up to 1.7x improvement in single-thread performance and up to 1.5x improvement in multi-thread performance generation over generation. The player adopts Intel® UHD Graphics for 10th Gen Intel® Processors and has up to 2X performance improvement in graphics over previous generations. It supports vivid dual 1080p or dual UHD video playback via HDMI 2.0a (4096 x 2160@60Hz) and DisplayPort 1.2 (4096 x 2160@60Hz) ports.
FEATURES:
- Elkhart Lake processor
- 4GB memory
- Intel UHD onboard graphics
- Up to 4k resolution support
- Support for Wi-Fi/Bluetooth module
- Small form factor design
Specifications
| CPU | Intel® Celeron® J6412 processor |
|---|---|
| CPU Frequency | 2.60GHz |
| Chipset | SoC |
| CPU Processing Units | 4 Cores |
| CPU TDP | 10W |
| System Memory | 4 GB, Onboard LPDDR4-2666MHz |
| Storage | 1 x Full-size Mini-PCIe for MSATA |
| GPU | Intel® UHD Graphics |
| Graphic Engine | DirectX, OpenGL, OpenCL, Intel® Quick Sync Video |
| Multi-media | 4kp60 8-bit H.264 decode, 4kp60 8-bit and 10-bit H.265/HEVC decode, up to 4kp60 VC1, VP8, VP9 decode, 1080p60 MPEG2 decode |
| Display Interface | 1 x DP (Max.3840 x 2160 @60 Hz), 1 x HDMI (Max.3840 x 2160 @60 Hz) |
| Network Controller | 1 x Realtek RTL 8111H Gigabit Ethernet |
| Ethernet Interface | 1 x RJ45 |
| Wi-Fi/BT | 1 x E-Key M.2 (2230) for Wi-Fi/BT, Support Wi-Fi 5, Wi-Fi 6 |
| USB | 4 x USB3.2 Gen2 (10Gbps) |
| Serial Port | 1 x RS232 |
| Audio | 1 x 2-in-1 Headset (MIC-IN & AUDIO-OUT) |
| Button | 1 x Power on, 1 x CLR-CMOS |
| Antenna | 2 x Connector for Wi-Fi/BT |
| Watchdog Timer Yes | |
| Auto Power On Yes | |
| RTC Set up independently every day, a week as a cycle | |
| Power Requirement | DC-IN, 19 V/2.37 A |
| Construction | Metal |
| Operating System Support | Windows 10 (64bit) / Windows 11 (64bit) / Linux Ubuntu (64bit) |
| Product Dimensions | 13 x 12.9 x 2.5 cm |
| General | |
| Brand | Giada |
| Model / part number | DK310-J641242M0G-GIA |
| Shipping weight | 883 g |
What's in the box
- Giada DK310 Intel Celeron J6412 Signage Player - Black x1
